The new Maguay eXpertServer Data Center product family is a purpose built, performance-optimized data center block ideal for use in High Performance Computing and Artificial Intelligence applications. Designed for Intel® Xeon® Platinum 9200 series processors, with up to 24 DDR4 DIMM slots per compute module, the S9200WK family maximizes processor and memory bandwidth to provide leadership performance for the most demanding compute use requirements.
• Leadership CPU performance per socket with Intel’s highest core count, Intel® Xeon® Platinum 9200 processors
• Double the memory bandwidth for memory-intensive workloads with 12 memory channels per CPU, 24 memory channels per compute module
• New Intel® Deep Learning Boost Instructions for data analytics greatly accelerates inference performance
• Multi-Chip packaging optimized for density and performance

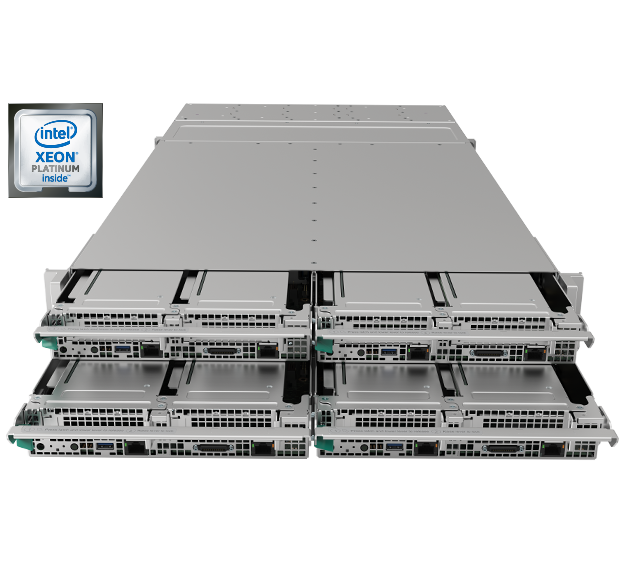

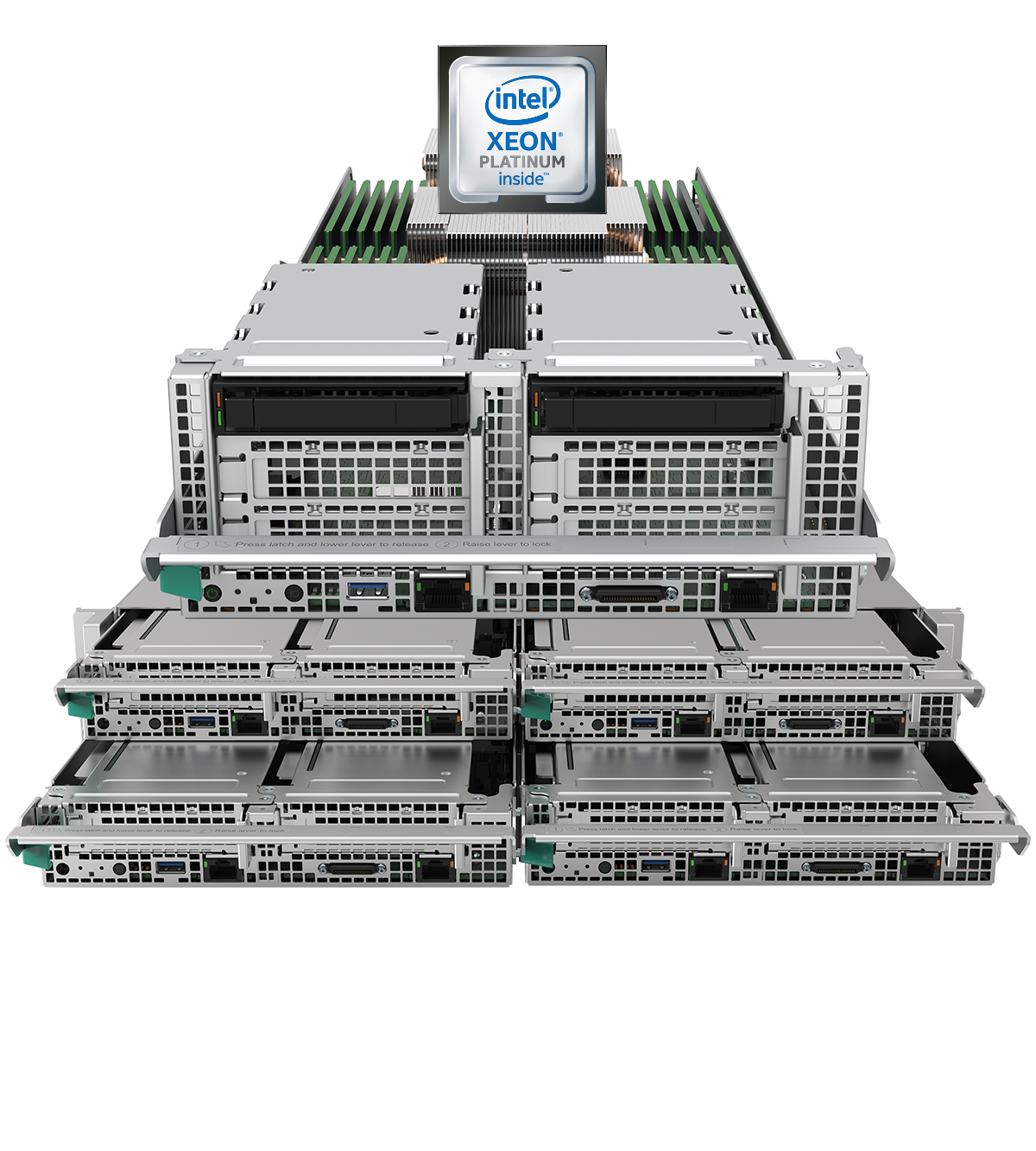

Up to 4 compute modules per 2U chassis which can support multiple compute module types in a single chassis.

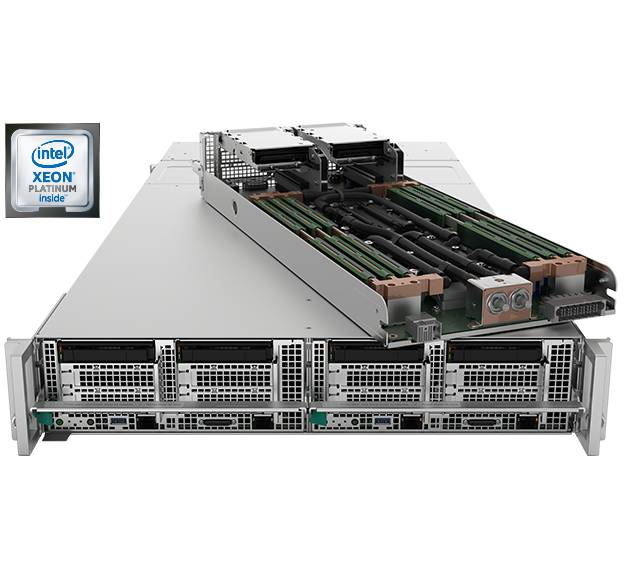

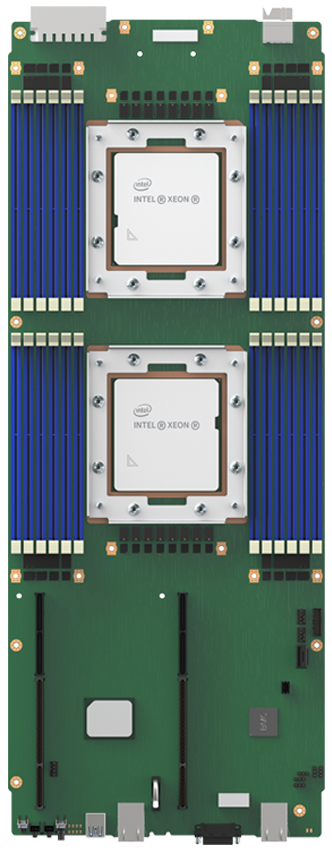

2 CPU compute module design with advanced cooling technology for high flow rate air or liquid cooled for CPUs, VRs, DIMMs, and memory VRs for high heat capture ratio
Up to 350W processor TDP for high performance workloads in a 2U air cooled chassis, up to 400W processor TDP with liquid-cooled versions
Up to 2 x16 PCIe slots in 1U compute modules, up to 4 x16 PCIe slots in 2U compute modules for network expansion options
Support for 2x M.2 SATA/NVMe storage devices per 1U compute module, up to 2x M.2 SATA/NVMe and 2x U.2 NVMe storage devices per 2U compute module
Hot-swappable compute modules, storage¹, fans, and power supplies
Maguay eXpertServer DC, based on the S9200WK product family is the highest performance member of Intel® Data Center Blocks. These fully validated systems include Intel’s latest data center technology ― already optimized to work better together ― allowing clients to accelerate time to market with reliable data center solutions.
The process of configuring and validating the hardware components of solutions that are tuned to meet specific customer requirements is a complex and resource intensive process. This server family reduces this complexity, making it easier to build innovative server solutions that can support the demands of today’s data center workloads.
The Maguay eXpertServer DC can be configured to support a wide range of memory, storage, and I/O options. Solutions are configured using Intel® Xeon® Platinum 9200 processors, Intel® Server System S9200WK Compute Modules, and Intel® Server Chassis FC2000.
The Intel® Server Chassis FC2000 family allows flexible configuration of different functionality compute modules in a single chassis further extending the benefits of Intel® Server System S9200WK Data Center Blocks. This allows a single data center block to address both compute and service node functionality simultaneously, reducing cost and increasing functionality.
